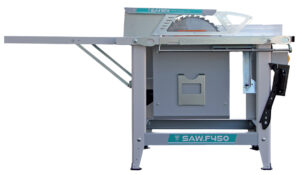

Circular saw for construction sites

SAW F.450

230V

Complete with blade with Widia teeth Ø 450 x 4.4/3 .0 x 30 Z36
Blade block with aluminium elements
Fitted with two pushers and a service key for changing the blade
Four robust, foldable lifting eyelets for safe transport
Table extends to the rear, total length 185 cm
Dust extraction: the machine is equipped with a Ø 80 mm suction duct for connecting a vacuum cleaner or opening for discharge onto the floor
Aluminium profile longitudinal bracket with two operating positions
Graduated transverse bracket
Three-phase 3P + N + T switch with phase inverter to facilitate changing direction of blade rotation
Schuko single-phase switch

Materials to be cut

Advantages in use

Powerful motor (3 kW) for comfortable cutting.
Robust, heavy-duty powder-coated frame for long life.
Enhanced safety with the new self-closing blade guard.
Electronic blade braking device – blade stops in less than 10 seconds.
Optimal motor overload protection with motor-protection switch.
The minimum voltage coil cuts off the motor in the event of a power failure; motor does not restart when the voltage is restored.
The poly-V belt transmission system means higher torque at start-up and constant power during cutting.

Specifications

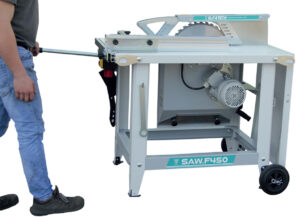

OPTIONAL: Wheel kit for minor repositioning

Tensione di rete / potenza del motore	Monofase 230V / 3 kW
Max. diametro lama × diametro foro	Ø450 x 30 mm
Velocità lama	2.860 g/min – 30 m/s
Altezza massima di taglio utile	155 mm
Dimensioni del tavolo	cm 108 x 70 – altezza da terra cm 85
Dimensioni d’ingombro (L × P × A)	cm 108 x 78 x h102 (L con esetnsione cm 185)
Peso (kg)	102
Livello di potenza sonora / livello di pressione sonora	104,7 dB / 93,7 dB (A)
